SPARE
PARTS

for
RS2225
Sealers

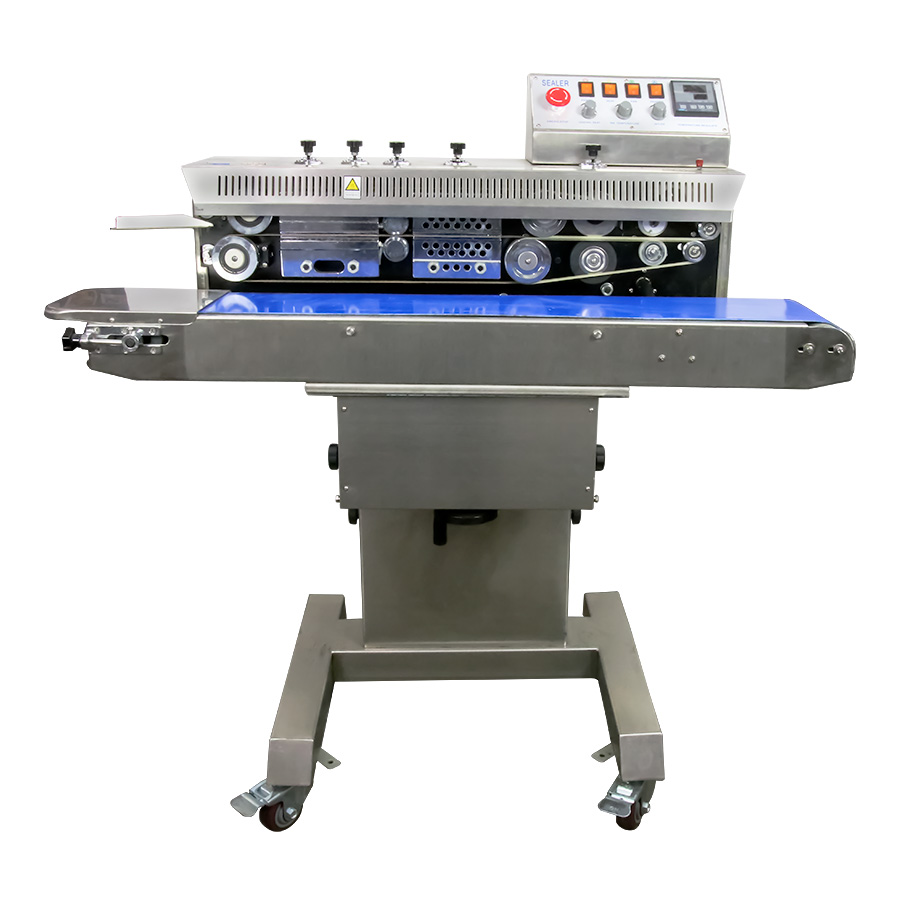

RS2225 RapidSealer™

Band Sealer with Dry Ink Printer

Starting Price: $3,546.00

Standard Features:

  • All metal stainless steel construction
  • Right to Left or Left to Right configuration available
  • Digital temperature controller
  • Standard printing attachment included
  • Capable of printing up to 20 characters at one time
  • Seals a minimum of 40 bags (Test production: 3.4" x 4" pouches) per minute
  • Fully adjustable conveyor table capable of tilting up to 45 degrees
  • Stainless steel industrial grade casters

Accessories:

  • Spare Parts Kit
  • Bag Counter
  • Various ink colors: Red, Black, Blue, White, Yellow (Red and Black are stock items)
  • Upgradable Printing Wheel for up to 40 characters available

Note on Shipping

Please note for machine orders that require crating, we will not charge shipping at checkout. Once we have more final weight and crate dimensions, we will contact you with accurate freight costs to work out the best shipping option for you.

Horizontal Models:

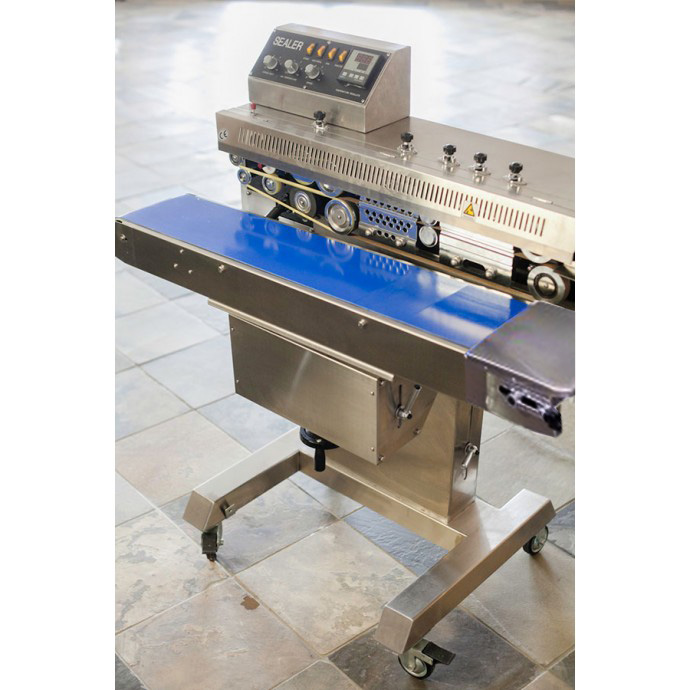

RSH2225SSDC stainless steel rapid band sealer
PN: RSH2225SSDCRL
Stainless Steel Hevy Duty Horizontal RapidSealer™ with Dry Ink Printer
Right to Left Configuration
Price: $3,546.00
Quantity

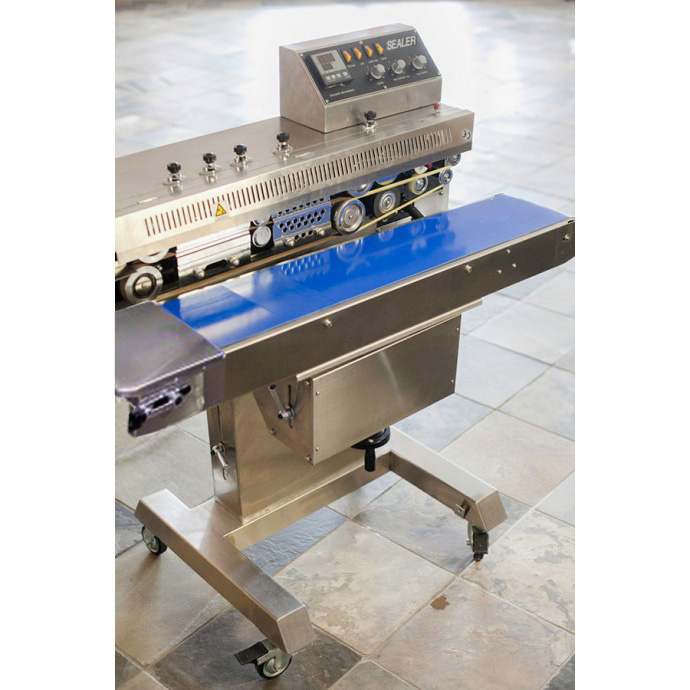

RSH2225SSDC stainless steel rapid band sealer
PN: RSH2225SSDCLR
Stainless Steel Heavy Duty Horizontal RapidSealer™ with Dry Ink Printer
Left to Right Configuration
Price: $3,696.00
Quantity


Vertical Models:

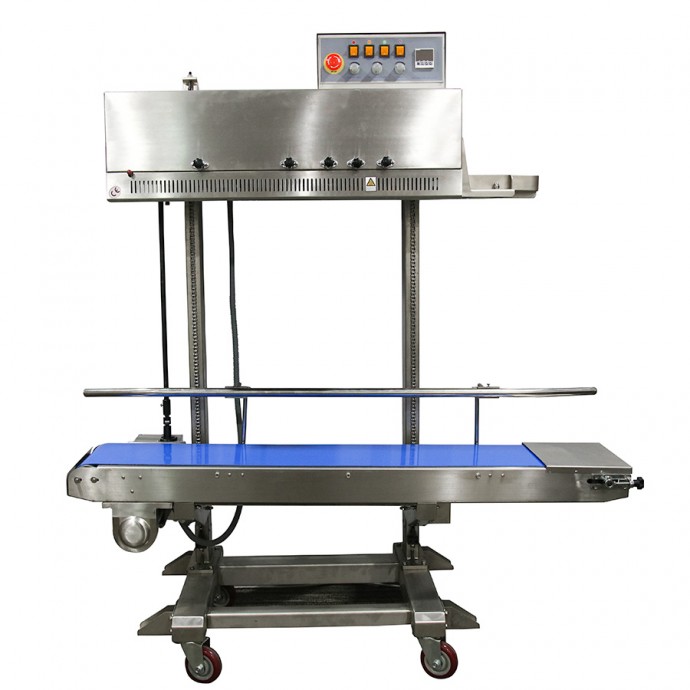

rsv2225SSDC large vertical rapidsealer with dry ink printer
PN: RSV2225SSDCRL
Stainless Steel Heavy Duty Vertical RapidSealer™ with Dry Ink Printer
Right to Left Configuration
Price: $4320.50
Quantity

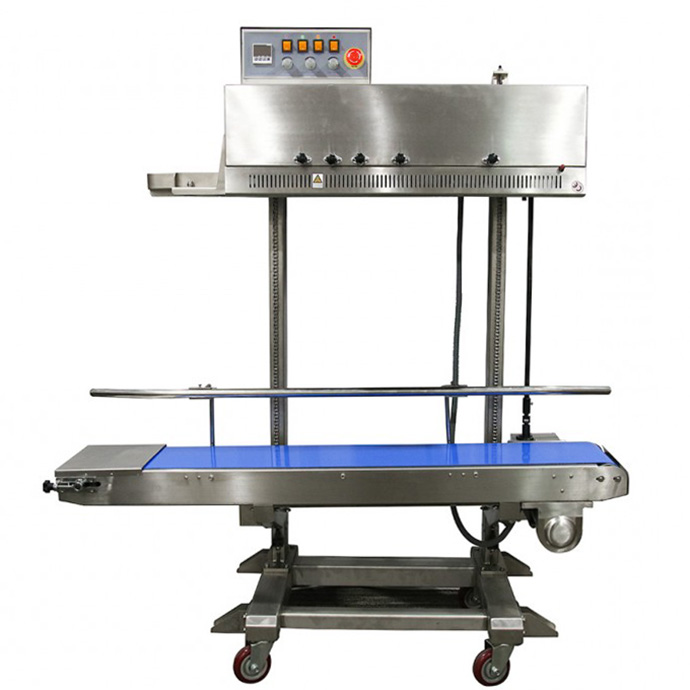

rsv2225SSDC large vertical rapidsealer with dry ink printer
PN: RSV2225SSDCLR
Stainless Steel Heavy Duty Vertical RapidSealer™ with Dry Ink Printer
Left to Right Configuration
Price: $4,470.50
Quantity


Need your packaging to be Vacuum Sealed?

See our RapidSealers™ with Vacuum Capabilities

Need your packaging to be gas flushed?

See our RapidSealers™ with Gas Flush

Need a combo vacuum and gas flush sealer?

See our VakRapid2.5™ system

We Modify Band Sealers to Fit Your Specific Need

The RS2225™ Continuous RapidSealer™ comes equipped with a Dry Ink Printer capable of printing up to 20 characters at one time and can be upgraded to print up to 40 characters at one time. Capable of sealing and printing up to 40 bags (Example; 3.4" x 4") per minute. Each unit comes with a small kit of commonly used letters (M,F,D,E,X,P) and number (0-9) movable types. Perfect for lot codes, expiration dates, company names or any type of message that the customer desires to add. It generates up to 300 C°, so it can heat seal most materials used in flexible packaging. The RS2225™ is an industrial grade machine that can increase production and reduce costs at an affordable price.

WARNING: Spare Parts & Accessories are now SOLD SEPARATELY!
In order to reduce the base price of our RapidSealer™, we no longer supply accessories and spare parts with each unit. This allows our customers to select these add-ons only as needed.
The following are additional accessories which may be added-on:

  • (10) PTFE Bands
  • (2) Urethane Drive Belt 13.5"
  • (2) Black Ink Rolls
  • (2) Urethane Belts 19.0"
  • (1) Sensor
  • (1) Silicon Wheel
  • (1) Letter Holder
  • (1) Temperature Controller
  • (1) Main Control
  • (4) Clutch Belts
  • (1) Heating Element
  • (1) ToolKit: 2 Screwdrivers, Wrench, 2 Allen Wrenches, Silicone Wheel
Sealing Speed: 512"/min (13m/min)
Sealing Width 1/8" – 5/8"
Printing Capabilities Up to 20 Characters at one time (Upgradable to 40 characters)
Ink Type Dry Ink Wheel
Temperature Range 32- 575 F° (0 to 300 C°)
Voltage 110V (Also available on 220V in a wide variety plugs.)
Hertz 60 Hz. for 110V/ 50Hz. for 220V
Power 500 Watts/4.55 Amps
Max. Load on Conveyor Table: 12 lbs. / 4.5 kg.
Machine Size 44" X 24" X 41"
Weight 187 lbs. / 85 kg. (With Packaging Included)

RapidSealer™ Model 2225SSDC Spare Parts Kit
Part Number: 11CXSPPRTKT
Includes:

  • (10) PTFE Bands
  • (2) Urethane Drive Belt 13.5"
  • (2) Urethane Drive Belt 19"
  • (1) Temperature Controller
  • (1) Heating Element
  • (2) Large Clutch Belts
  • (2) Small Clutch Belts
  • (1) Main Control Board

$285.66

View Complete List of RS2225SSDC Spare Parts
