vacuum and gas flush band sealer

VakRapid2.5

Vacuum + Gas Flush VakRapid™

Starting Price: $3,895.00
Standard Features:

  • - Stainless Steel All Metal Construction
  • - Digital Temperature Control
  • - Right to Left and Left to Right Configurations Available
Optional Add-Ons:
  • - Spare Parts Kit
  • - Emboss Printer
  • - Stainless-Steel Stand
  • - Nitrogen Generator Kit
  • - Sterile Air Kit

Gas flush and vacuum system designed and assembled in California**.

**With additional Production in our Florida location starting soon.

Horizontal VakRapid2.5:

vacuum and gas flush band sealer

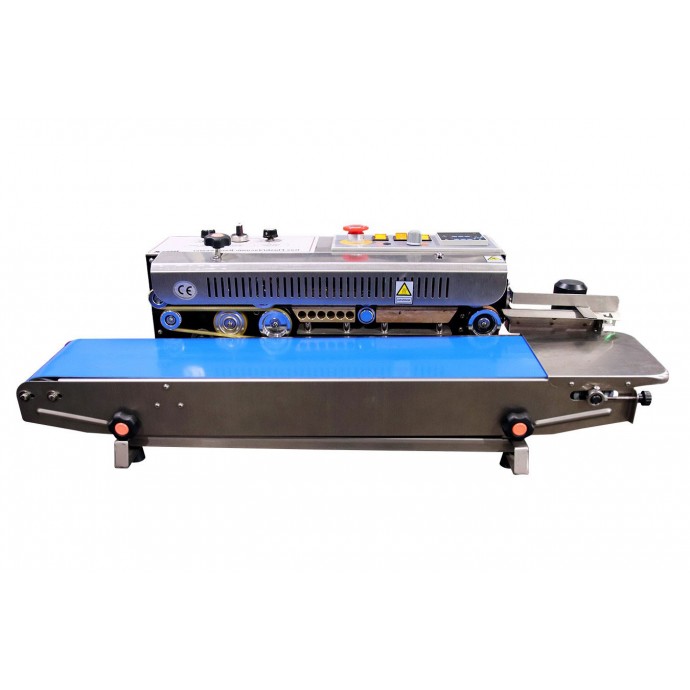

Part Number: RSH1525SSDCRL-VGF
Stainless Steel Horizontal VakRapid™ with Vacuum + Gas Flush
Right to Left Configuration
Price: $3,895.00
Quantity


vacuum and gas flush band sealer

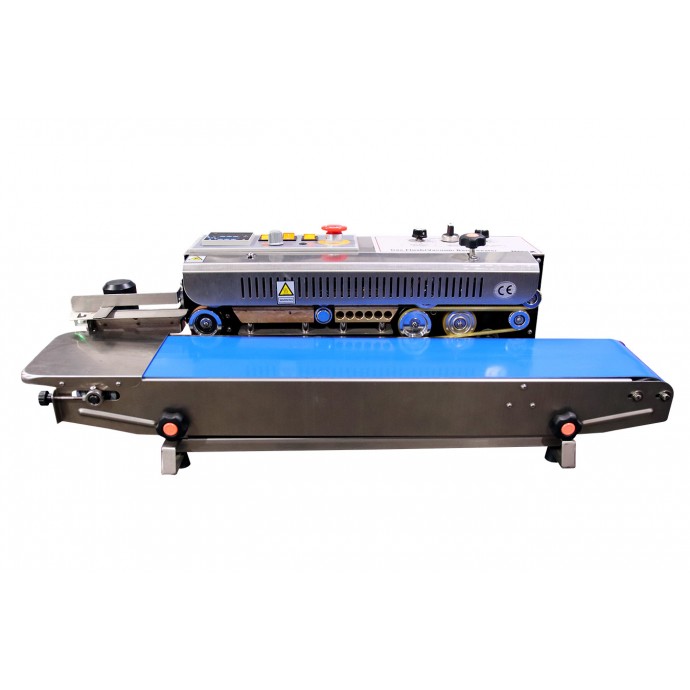

Part Number: RSH1525SSDCLR-VGF
Stainless Steel Horizontal VakRapid™ with Vacuum + Gas Flush
Left to Right Configuration
Price: $3,995.00
Quantity


Vertical VakRapid2.5:

vacuum and gas flush vertical band sealer

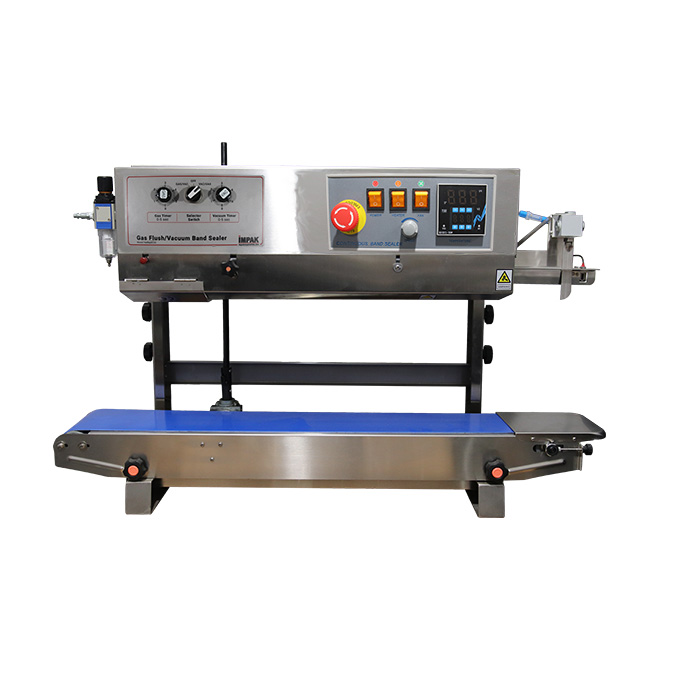

Part Number: RSV1525SSDCRL-VGF
Stainless Steel Tabletop Vertical VakRapid™ with Vacuum + Gas Flush Capability
Right to Left Configuration
Price: $4,090.00
Quantity


vacuum and gas flush vertical band sealer

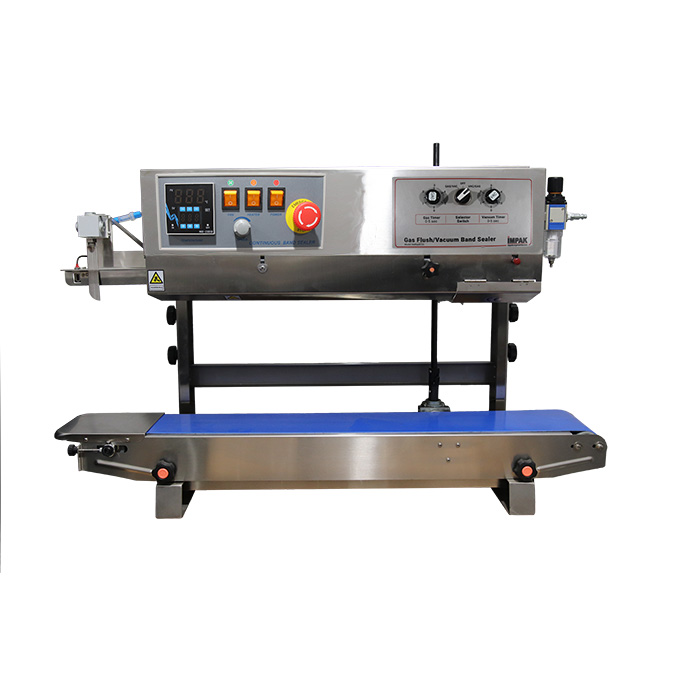

Part Number: RSV1525SSDCLR-VGF
Stainless Steel Tabletop Vertical VakRapid™ with Vacuum + Gas Flush Capability
Left to Right Configuration
Price: $4,180.00
Quantity



Horizontal VakRapid2.5 w/ Dry Ink Printer:

vacuum and gas flush band sealer with printer

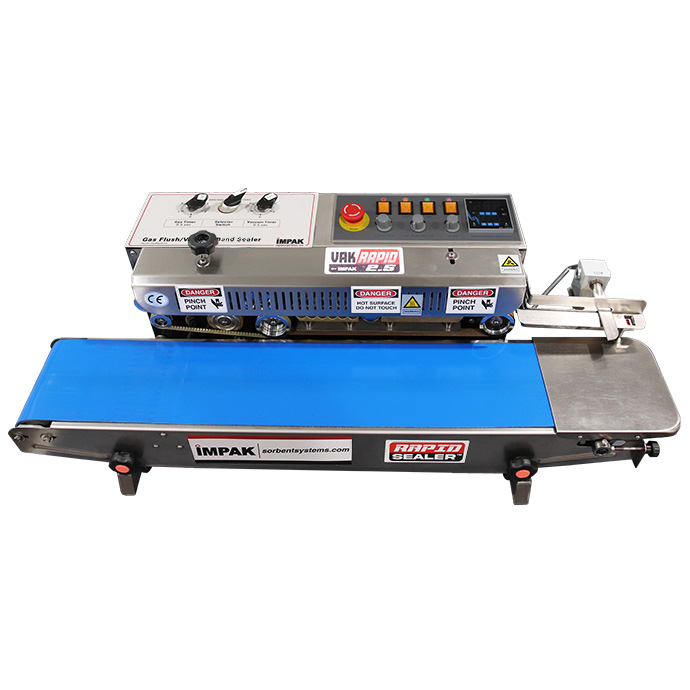

Part Number: RSH1575SSDCRL-VGF
Stainless Steel Horizontal VakRapid™ with Dry Ink Coding and Vacuum + Gas Flush Capability
Right to Left Configuration
Price: $4,295.00
Quantity


vacuum and gas flush band sealer with printer

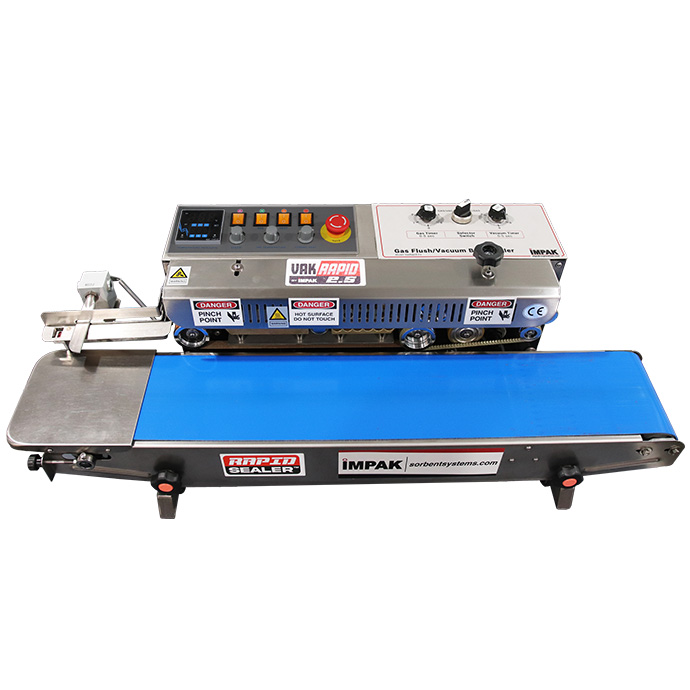

Part Number: RSH1575SSDCLR-VGF
Stainless Steel Horizontal VakRapid™ with Dry Ink Coding and Vacuum + Gas Flush Capability
Left to Right Configuration
Price: $4,495.00
Quantity

*Contact a Sales Representative for Availability*


Vertical VakRapid2.5 w/ Dry Ink Printer:

vacuum and gas flush band sealer with printer

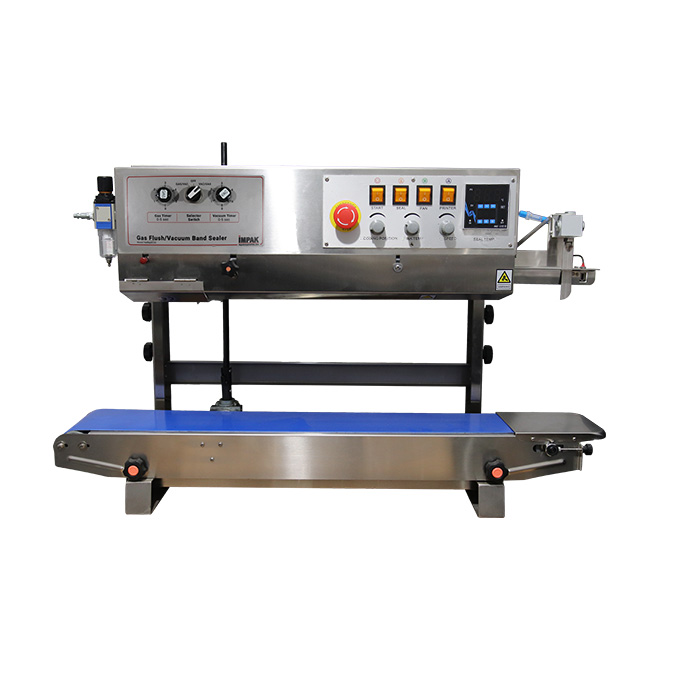

Part Number: RSV1575SSDCRL-VGF
Stainless Steel VakRapid™ with Digital Controller, Dry Ink Coding and Vacuum + Gas Flush Capability
Right to Left Configuration
Price: $4,295.00
Quantity


vacuum and gas flush band sealer with printer
Part Number: RSV1575SSDCLR-VGF
Stainless Steel Vertical VakRapid™ with Dry Ink Coding and Vacuum + Gas Flush Capability
Left to Right Configuration
Price: $4,495.00
Quantity

*Contact a Sales Representative for Availability*

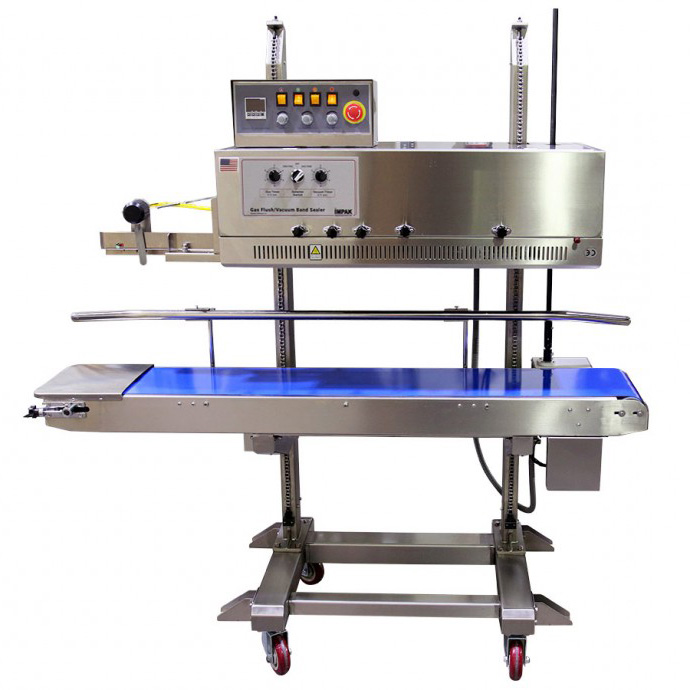

VakRapid2.5 - Heavy Duty Model:

heavy duty vacuum and gas flush band sealer with dry printer

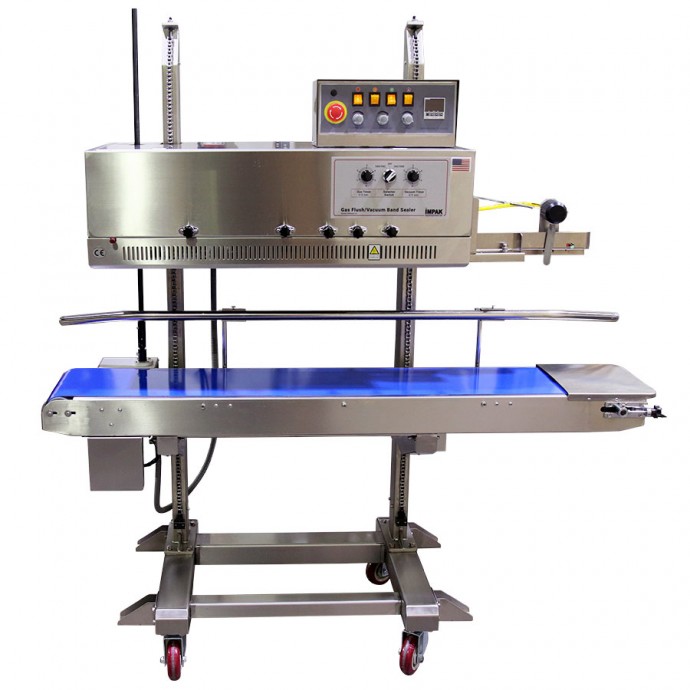

Part Number: RSV2225SSDCRL-VGF
Heavy Duty Stainless Steel Vertical VakRapid™ with Dry Ink Printer, Digital Controller and Vacuum + Gas Flush
Right to Left Configuration
Price: $7,640.00
Quantity


heavy duty vacuum and gas flush band sealer with dry printer
Part Number: RSV2225SSDCLR-VGF
Heavy Duty Stainless Steel Vertical VakRapid™ with Dry Ink Printer, Digital Controller and Vacuum + Gas Flush
Left to Right Configuration
Price: $7,790.00
Quantity



Need your packaging to be Vacuum Sealed?

See our RapidSealers™ with Vacuum Capabilities

Need your packaging to be gas flushed?

See our RapidSealers™ with Gas Flush

Interested in an integrated Inkjet printer?

See our new PrintRapid™ line

HIGH SPEED, HIGH QUALITY VACUUM/GAS FLUSH (OR BOTH) SEALING FOR FRESHNESS

These unit requires a regulated (suggested 15 – 20psi) inert gas supply, and compressed air source providing at least 80psi.

As the flagship of our highly successful series of RapidSealer™, the IMPAK VakRapid™ Gas Flush + Vacuum Continuous Band Sealers set the standard for high speed bagging of food, medical, pharmaceutical and electronics applications that require optimum freshness and shelf life. The VakRapid™ Series provides high quality, hermetic seals on all moisture-barrier bag materials. The combination vacuum and nitrogen gas flush system removes up to 99% of oxygen, depending on the application, and creates a low moisture package. It is an ideal solution for food, medical, pharmaceutical, electronics and other products that need added protection against decomposition. The gas flush system also can be used to create a cushion like buffer to protect contents from damage. The VakRapid™ is economical when compared to other sealers that offer nitrogen gas flushing for air removal - including a vacuum cycle after gas flushing to allow virtually oxygen free vacuum-sealed product bags. Additional options include a stainless steel stand with casters for portability, embossing or dry print letter kit and a spare parts kit.

This conveyor style heat sealer is ideal for use with products which benefit from minimal oxygen levels but are delicate and might be damaged by a vacuum.

The nitrogen flush forces oxygen out of the bag for prolonged shelf-life and also creates a cushion for the product.

To operate, the nozzle is inserted into the bag and a bag sensor activates the gas flush. The bag fills as it is passed toward the heating elements. When the edge of the bag meets the nozzle the nozzle pivots out of the way and the bag continues through the heating and cooling blocks where it exits at the other side of the machine.

The machine may be used in conjunction with several gas types but most typically is used with nitrogen. Where space is a concern, IMPAK offers a Nitrogen Generator that converts oxygen to nitrogen and eliminates the need for a bulky tank.


IMPORTANT RECOMMENDATION: Send Us Your Bag Samples

Dear Customer: Due to the unique nature and layout of our gas flush and vacuum band sealers combined with the multitude of pouches available we kindly ask that you send in any pouch(es) and physical product(s) you intend to use in the unit prior to or upon purchase. Our skilled technicians will run the pouch through an identical unit and provide any feedback, suggestions or possible issues that may be encountered, such as zipper placement or fill volume. IMPAK is committed to helping our customers make sound purchasing choices, and in most cases we offer this testing free of charge. Please take advantage of the opportunity to gain valuable feedback about your packaging process.

Horizontal Specifications

Sealing Speed 0 - 8.5m/min (0 - 320"/min)
Sealing Width 6 - 12mm (1/8” - 5/8”)
Temperature Range 32 - 572° F (0 - 300° C)
Voltage 110V/60Hz (Also available on 220V/50Hz in a wide variety plugs.)
Power: 500 Watts/4.55 Amps
Max. Load on Conveyor Table: 2.5 kg / 5.5 lbs
Machine Size: 38” X 14” X 14”
Weight 99 lbs. / 45 kg. (With Packaging Included)

Vertical Specifications

Sealing Speed 0 - 8.5m/min (0 - 320"/min)
Sealing Width 6 - 12mm (1/8” - 5/8”)
Minimum Bag Height 7.75"
Maximum Bag Height 13.0"
Temperature Range 32 - 572° F (0 - 300° C)
Voltage 110V/60Hz (Also available on 220V/50Hz in a wide variety plugs.)
Power: 500 Watts/4.55 Amps
Max. Load on Conveyor Table: 10 lbs.
Machine Size: 38” X 28” X 14”
Weight 99 lbs. / 45 kg. (With Packaging Included)

2225 Series Specification

Sealing Speed: 0 - 12m/min (0 - 513"/min)
Sealing Width 6 - 12mm (1/8” - 5/8”)
Printing Capabilities Up to 20 Characters at one time (Upgradable to 40 characters)
Ink Type Dry Ink Wheel
Temperature Range 0 to 300 C° ; 32- 575 F°
Voltage 110V (Also available on 220V in a wide variety plugs.)
Hertz 60 Hz. for 110V/ 50Hz. for 220V
Power 500 Watts/4.55 Amps
Max. Load on Conveyor Table: 12 lbs. / 4.5 kg.
Machine Size 44" X 24" X 41"
Weight 187 lbs. / 85 kg. (With Packaging Included)

1525 Spare Parts Kit

Part Number: 77XSPPTKT1525
Price: $159.90 (when purchased separately)
Included Items:

  • - 2 urethane Drive Belts
  • - 10 *PTFE Flouropolymer Bands
  • - 1 Printed Circuit Board
Quantity:


1575 Spare Parts Kit

Part Number: 81XSPPRKT
Price: $159.95 (when purchased separately)
Included Items:

  • (2) Urethane Drive Belts
  • (4) Clutch Belts
  • (1) Main Control
  • (1) Temperature Adjusting Printed Circuit Board
  • (1) Ink Roller Heating Element
  • (1) Sensor
  • (1) Brush Kit
  • (1) Letter Holder
  • (1) Silicon Printing Wheel
  • (1) Black Ink Wheel
  • (10) 15.75" PTFE Fluoropolymer Bands
Quantity:


2225 Spare Parts Kit

Part Number: 11CXSPPRTKT
Price: $285.66 (when purchased separately)
Included Items:

  • (10) PTFE Bands
  • (2) Urethane Drive Belt 13.5"
  • (2) Urethane Belts 19.0"
  • (1) Temperature Controller
  • (1) Main Control
  • (4) Clutch Belts (2 large, 2 small)
  • (1) Heating Element
Quantity:
