horizontal continuous band sealer with inkjet cartridge printer

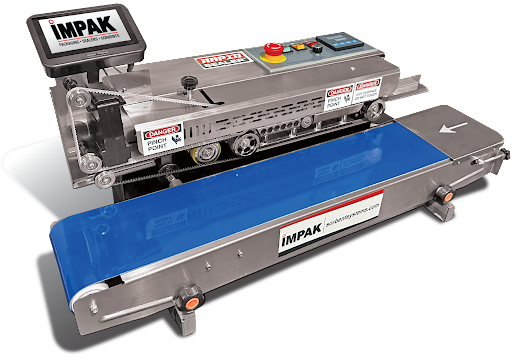

1525 Series - Stainless Steel PrintRapid™ with Inkjet Cartridge Printer

Starting Price: $1,520.00
Standard Features:

  • - All Metal Construction with a Stainless Steel Finish.
  • - Available in horizontal and soon vertical configurations.
  • - Digital Temperature Controller.
  • - Integrated Inkjet Cartridge Printer Head and Controller
  • - 6 max print lines
  • - Seals a minimum of 45 (Test production: 3.4" x 4" pouches) bags per minute.
  • - Warranty: One year parts and labor, not including consumables
Accessories:
  • - Spare Parts Kit Available
  • - Various Ink Wheel Colors Include: Red, Black, Blue, White and Yellow

Horizontal Configuration

horizontal stainless steel band sealer
Stainless Steel PrintRapid™ with Inkjet Printer
Digital Controller
Right to Left Feed
Integrated InkJet Printer and Control System
Part Number: RSH1525RLB-INJ
Price: $1,520.00
Quantity


We Modify Band Sealers to Fit Your Specific Need

The RSH1525RLB-INJ PrintRapid™ Continuous Stainless Steel Band Sealer with Built-in Inkjet™ Printer is more than capable of sealing a minimum of 45 bags (Example; 3.4" x 4") per minute. It comes with an Inkjet cartridge printer and controller installed that allows the customer to print up to 6 print lines. Perfect for lot codes, expiration dates and company name, the best part of this feature is that the machine will print on the bag at the same time it seals the bag. Capable of heat sealing at up to 300 C°, this machine is capable of sealing most materials used in flexible packaging. The RSH1525RLB-INJ PrintRapid™ offers all the needed features for a high production rate at an affordable price.

Horizontal Specifications

Sealing Speed 312in/min
Sealing Width Min seal width 1/8” – max seal width 5/8”
Printing Capabilities Max 6 Print Lines
Ink Type Inkjet Cartridge
Temperature Range 32- 575 F° ; 0 to 300 C°
Voltage 110V/60Hz
Power: 950 Watts/7 Amps
Max. Load on Conveyor Table: 5 kg.
Machine Size: 950mm X 480mm X 380mm
Weight 70 lbs. / 45 kg. (With Packaging Included)

Spare Parts Kit inlcudes:

  • 8 of the 15.25" PTFE Fluoropolymer Bands
  • 2 Drive Belts
  • 1 Printed Speed Control Circuit Board
  • 2 Replacement Fuses
  • 1 Flathead Screwdriver


Price: $159.90
