MIL-SPEC Packaging

Are you one of the select companies that produce items to the rigid specifications that REQUIRE* MIL-SPEC packaging?

We can be COMPETITIVE.

QPL Listed - Learn More

Order MIL-SPEC Packaging

*ACTUAL certification to military specifications, not "conforms to" or "similar" or "commercial" version.

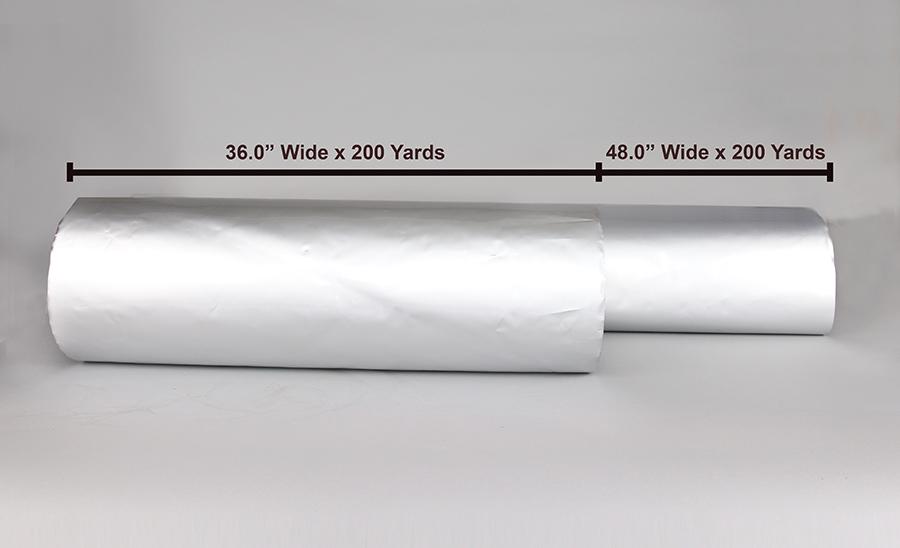

mil-spec rollstock size comparison

MAKE YOUR OWN MIL-SPEC BAGS

If you have wide varieties of parts that are of different sizes and need to make military specification pouches try using this 200 yrd material. Try this material which works great in conjunction with our US-made mobile handheld sealer or our very economical hot jaw.



What is MIL-SPEC MIL-PRF-131 Class 1?

MIL-PRF-131K Class 1 is a moisture barrier grade material is the most common material used in MIL-SPEC packaging. There are several different types of MIL-SPEC packaging materials (for example: 81705E is for electronic products). The most common of all is the MIL-PRF-131 Class 1 grade which is a moisture barrier material designed for packaging government products, usually military items, that are moisture sensitive. Thus, one will often find a desiccant (MIL-D-3464) packet inside a package or a mil-spec pouch that has been produced from MIL-PRF-131K material.

We have learned that being able to provide 50" wide material in this extremely puncture resistant grade of MIL-PRF-131 moisture barrier film is very beneficial to those doing crating, and packaging for military grade products. For commercial grade products PAKDRY7500 is produced in much higher volume is not only superior but more readily available.

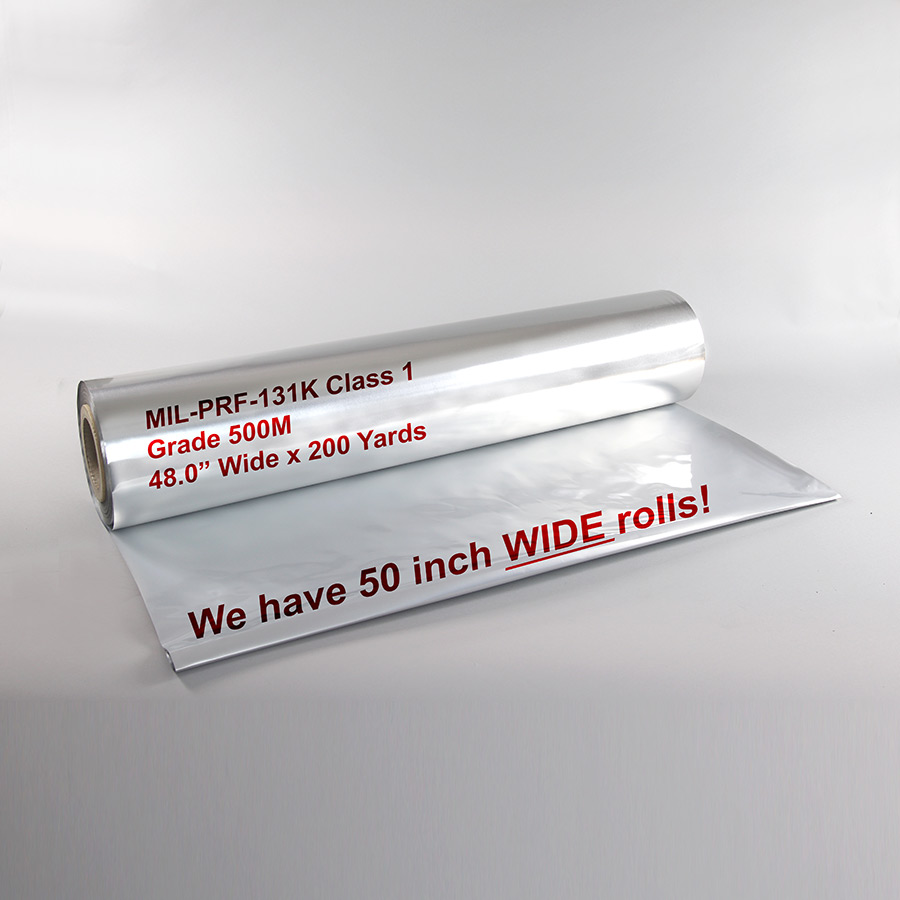

mil-prf-131K rollstock

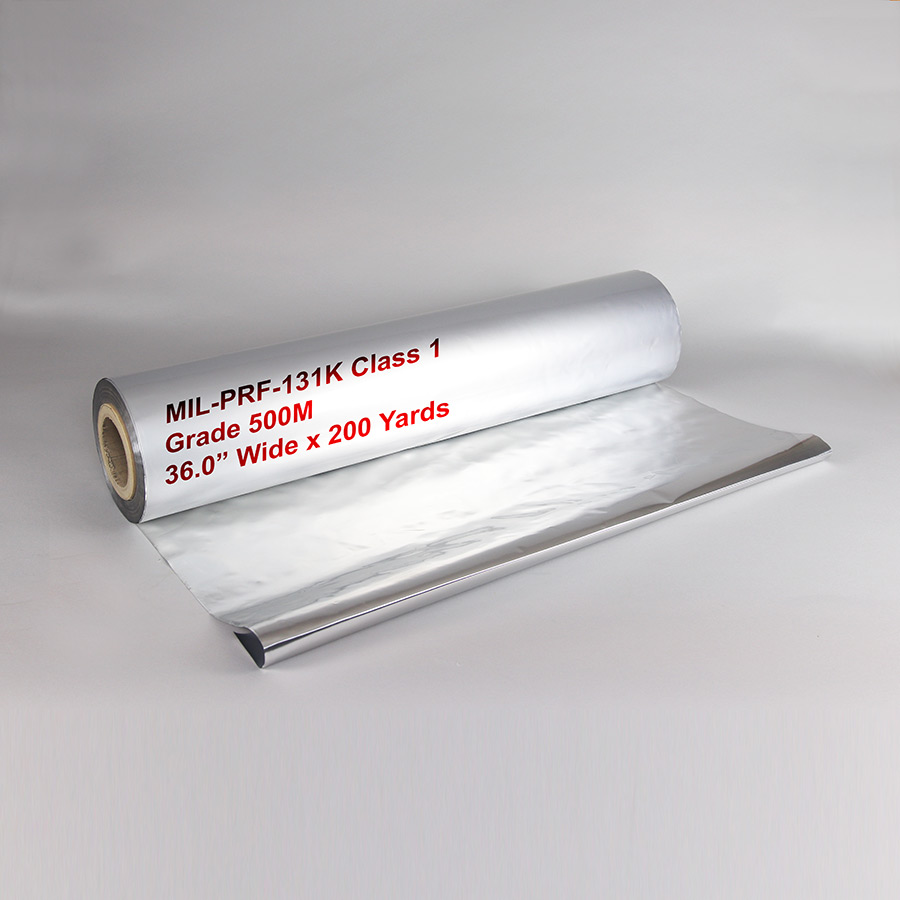

mil-prf-131K rollstock

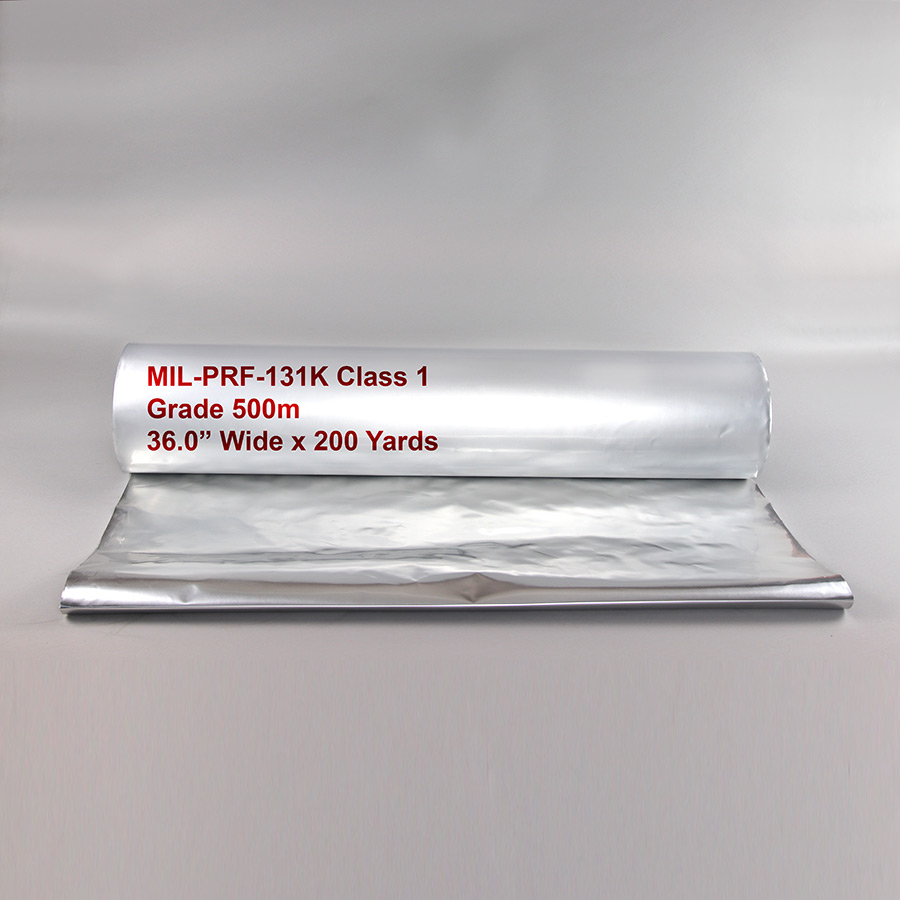

mil-prf-131K rollstock

MIL-PRF-131K

We often refer to MIL-PRF-131 (formerly classified as MIL-B-131K) barrier material but the latest specification issued by the military is MIL-PRF-131K. Issued by the Department of Navy on August 18, 2005

Pouches

Dimensions
(w x h)
Part Number Description Color Thickness Material Order
10.0" x 16.0" O.D. MS5C131K1016 Flat Pouch
3-Side Seal
MIL-PRF-131K
Grade 500M
250/case
Silver MIL-PRF-131K Grade 500M First Time Order Trial Case : $84.50/case

Please note: All our orders are carefully
reviewed before being finalized.If this
is not a first time purchase, this order
will be held for review. To view other
buying options see below.


Quantity

1 Case : $157.00/case
2 Cases : $144.75/case
3 - 5 Cases : $119.50/case
6 - 9 Cases : $99.75/case
10+ Cases : $84.50/case

Quantity
20.0" x 25.0" O.D. MS1K131K2025 Flat Pouch
3-Side Seal
MIL-PRF-131K
Grade 1000M
200/case
Silver MIL-PRF-131K Grade 1000M 1 Case : $650.00/case
2 Cases : $606.00/case
3 - 5 Cases : $504.00/case
6 - 9 Cases : $444.00/case
10+ Cases : $424.00/case

Quantity

Rollstock

Dimensions
(w x h)
Part Number Description Color Thickness Material Order
36" x 200 yards 2CY36UF5C131K MIL-PRF-131K Class 1
Grade 500m
Rollstock
Silver MIL-PRF-131K Class 1 1 Roll : $262.75/roll
2 - 4 Rolls : $232.75/roll
5 - 9 Rolls : $220.75/roll
Pallet Quantity : Contact Us for Pricing

Quantity
36" x 200 yards 2CY36UF1K131K MIL-PRF-131K Class 1
Grade 1000m
Rollstock
Silver MIL-PRF-131K Class 1 Contact Us for Pricing
48" x 200 yards 2CY48UF5C131K MIL-PRF-131K Class 1
Grade 500m
Rollstock
Silver MIL-PRF-131K Class 1 1 Roll : $416.40/roll
2 - 4 Rolls : $366.40/roll
5 - 9 Rolls : $355.60/roll
Pallet Quantity: Contact Us for Pricing

Quantity
50" x 200 yards 2CY50UF1K131K MIL-PRF-131K Class 1
Grade 1000m
Rollstock
Silver MIL-PRF-131K Class 1 Contact Us for Pricing

MIL-PRF-81705E Type 1 Class 1

MIL-PRF-81705E Type 1 Class 1 is an ideal packaging material that provides protection from electrostatic discharge and moisture. This specification meets the established requirements for heat sealable, electrostatic discharge protective, flexible barrier materials used in military packaging of integrated circuits, semiconductors, resistors, microcircuits and printed circuit boards. Type 1 materials provide a moisture proof barrier and attenuation of electromagnetic interference.

Rollstock

Dimensions
(w x h)
Part Number Description Color Thickness Material Order
36" x 200 yards 2CY36T1C1G360 MIL-PRF-81705E Type 1 Class 1
Grade 360M
Rollstock
Silver MIL-PRF-81705E Type 1 Class 1 1 Roll : $314.75/roll
2 - 4 Rolls : $284.75/roll
5+ Rolls : $272.75/roll

Quantity
36" x 200 yards 2CY36T1C1G600 MIL-PRF-81705E Type 1 Class 1
Grade 600M
Rollstock
Silver MIL-PRF-81705E Type 1 Class 1 1 Roll : $376.75/roll
2 - 4 Rolls : $346.75/roll
5+ Rolls : $334.75/roll

Quantity
50" x 200 yards 2CY50T1C1G360 MIL-PRF-81705E Type 1 Class 1
Grade 360M
Rollstock
Silver MIL-PRF-81705E Type 1 Class 1 1 Roll : $414.05/roll
2 - 4 Rolls : $374.05/roll
5 - 9 Rolls : $365.45/roll

Quantity
50" x 200 yards 2CY50T1C1G600 MIL-PRF-81705E Type 1 Class 1
Grade 600M
Rollstock
Silver MIL-PRF-81705E Type 1 Class 1 Contact Us for Pricing

IMPAK moisture vapor barrier material meets all mil-specs. We design and manufacture a wide variety of mil-spec packaging products. Ask us to make custom sized bags for you.

What are MIL-DTL-117 Standards?

MIL-DTLs are detail specifications that outline how to achieve a specific requirement. One subcategory of packaging, MIL-DTL-117, specifies the nature of heat-sealed bags for military uses, like preserving food or storing supplies that are susceptible to corrosion. Heat-sealed bags can serve many purposes as personnel are planning for contingencies or conducting training scenarios. The DoD has set up in-depth criteria and checks to make these bags and pouches resilient and reliable.

What the bags are made of influences their ability to keep out air and unwanted chemicals. MIL-PRF-121, MIL-PRF-131, MIL-PRF-22191 and MIL-PRF81705 are the most widely used materials. The composition of the bags has to fall within the relevant type and class comparable to the style and purpose. Warding off water or grease takes a treated substance, and foil, plastic, kraft paper or laminate can create the protection your contents need. The thickness of the material is also managed to promote cost-efficiency.

MIL-I-8835 (FORMERLY MS20003-2)

MIL-I-8835 is a humidity indicator. It consists of a card that contains three spots, each one indicating a different level of humidity. The spots change color from blue to pink when the humidity threshold has been reached. From top to bottom, they measure 50% relative humidity, 40% relative humidity and 30% relative humidity, each one accurate to within 5%. The use of MS20003 can inform packaging facilities about the relative humidity in the packaging environment and whether it is suitable for sensitive applications.

Contact us to learn which of our products conform to MIL-I-8835 or any of the previously mentioned packaging standards.
