Starting Price: $17,875.00
Standard Features:
Please note for machine orders that require crating, we will not charge shipping at checkout. Once we have more final weight and crate dimensions, we will contact you with accurate freight costs to work out the best shipping option for you.
NEED VACUUM BAGS? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags or our 8.4375" x 12.875" O.D. Vacuum Bags
PRE-ORDER ITEM: AVAILABLE IN 4-6 WEEKS LEAD TIME

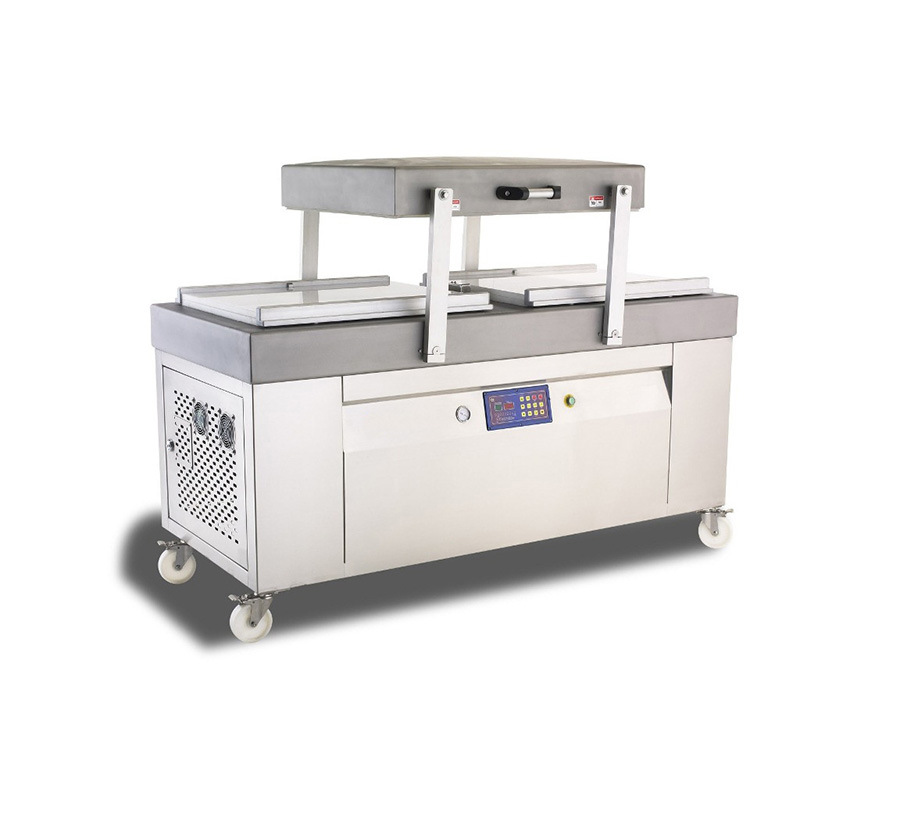

Better known as the “workhorses” within the vacuum chamber industry, our double chamber line of equipment is built to handle years of heavy use and abuse. You will not find an aluminum deck on these machines because they are built to last. Consisting of a fully enclosed stainless steel base with a reinforced chamber deck and heavy-gauge lid, these machines are anything but light duty. Understanding the high demands set forth by the industry no corners were cut in the construction of our CHDC series of chamber machines.
We build a complete line of double chamber equipment with items that range from 21” seal bars to over 39” and span a wide variety of widths.
For additional protection and increased function, we fit our double chambers with our PNC-01 programmable water-resistant, IP56-rated control panel. Another feature that sets us apart is the quick disconnect seal bars that can be removed and installed in a matter of seconds. With these easy-to-disconnect seal bars, there is no need to wait for maintenance to show up with tools when a seal wire breaks. By simply having a spare bar on hand, you can be back up and running in under a minute without any special tools.
Time is money in heavy usage applications and we have taken this into account when designing our double chamber machines. Easily removable cushion bars and spacer boards make cleaning the deck surface fast and efficient. Our spring design that assists in lifting the lid provides a smooth and easy back and forth movement that operators will love.
All IMPAK vacuum chamber models are guaranteed to meet the standards of ETL, UL and NSF.
In order to be the best we believe in using the best, and that is why Busch vacuum pumps come standard in all of our double-chamber machines. Find out for yourself what thousands of others around the world have known for years; choose IMPAK for your future vacuum packaging needs.
IMPAK has supplied CHDC-800 machines for the following applications:

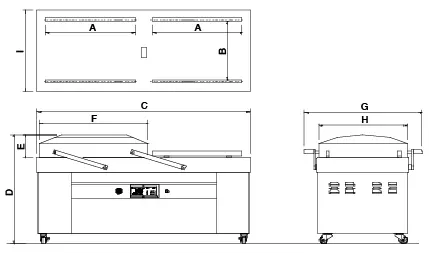

| Chamber size | 38.5" x 31.1" |
| Chamber depth | 10.0"/255mm |
| Distance between seal bars | 24"/610mm |
| Seal bar length (A) | 31.5"x4/800mm |
| Vacuum pump capacity | 100m3/h(5hp/4kw) |
| Voltage | 230V/3ph/60Hz/9amp |
| Machine weight | 1195 lbs. /572 kg |
| Machine size - L x W x H | 75.0" x 42.0" x 45.0" |
Swing Lid Double Chamber in Operation
Chamber Sealer Comparison - Vacuum With and Without Gas Flush
A hermetic seal on flexible packaging can be achieved with any of our sealing machines, this quick guide will help you choose the unit that will work best for your production needs.
Not every Industrial Vacuum Sealer applies to every application. There are different models and types of Vacuum Sealers available, and each one of those sealers has different features that can affect the way a production line works.
We design and manufacture custom sealing equipment to meet the unique needs of our customers. In addition to new machinery we even retrofit our customers’ existing equipment, regardless of the brand.
