Starting Price: $5,690.00
Standard Features:
NEED VACUUM BAGS? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags or our 8.4375" x 12.875" O.D. Vacuum Bags
AVAILABLE IN 2-3 WEEKS LEAD TIME

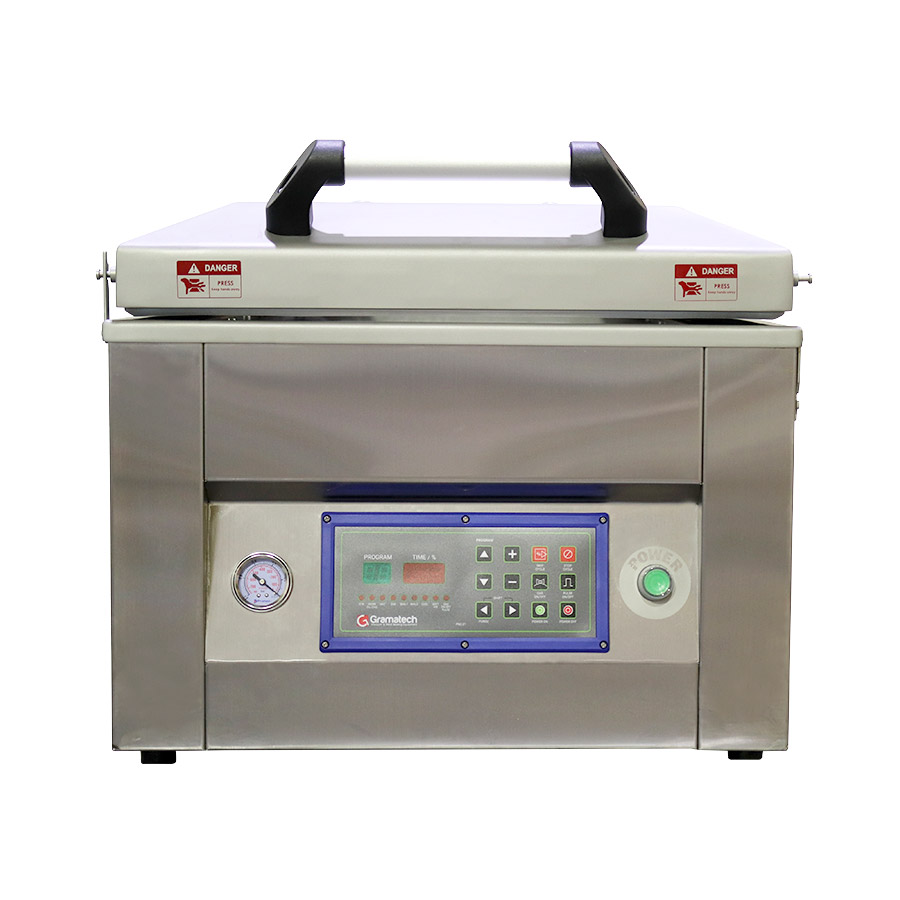

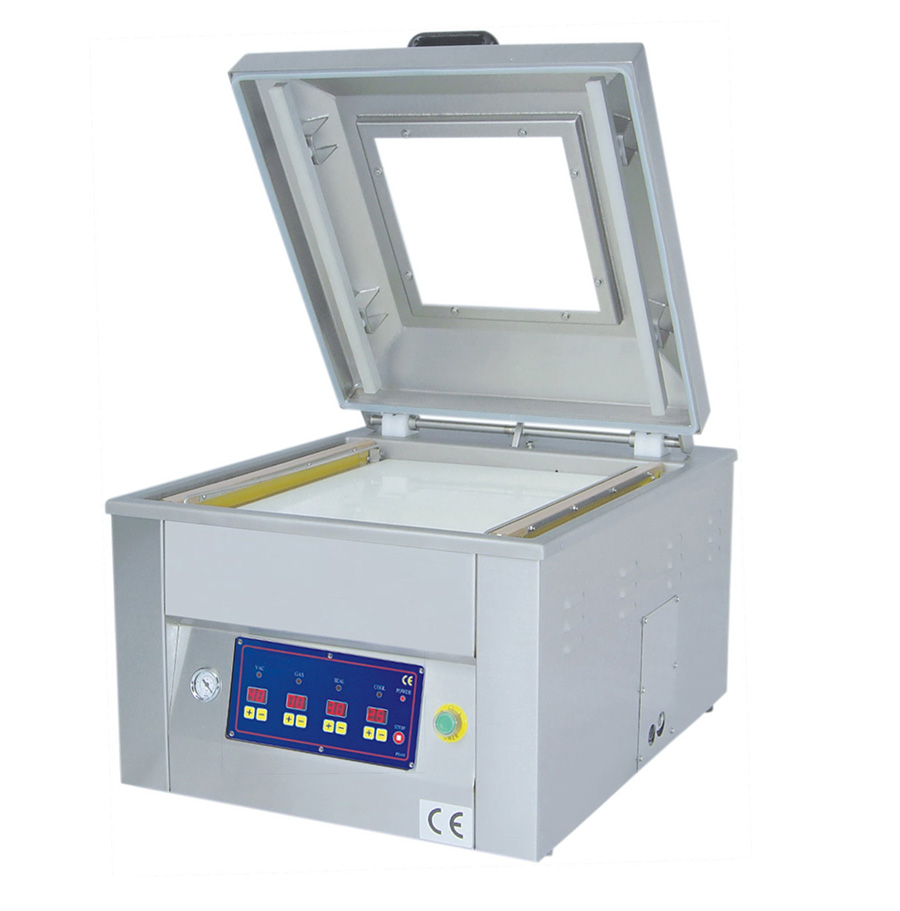

IMPAK’s model CHTC-520F is one of our most popular table top vacuum chamber sealer models. The “F” in the model number lets you know that this machine features a single 21” seal bar in the front of the vacuum cavity area. Like all IMPAK chamber vacuum sealers this machine is ETL tested, certified and labeled as meeting UL and CSA safety standards for packaging equipment as well as NSF sanitary standards. This rugged functional machine utilizes an all # 304 stainless steel housing, lid, with a viewing port, and vacuum cavity. It features a Busch vacuum pump for reliable and powerful vacuum performance. The standard PD-01 basic digital control panel allows the operator to quickly set the parameters for vacuum time, gas flush time (with optional gas flush system), seal time and cooling time with the accuracy of a digital readout. If your application requires more advanced control then the optional PNC-01 microprocessor based control panel may be just what you need. The PNC-01 allows for the vacuum to be controlled via time or vacuum pressure and also includes a 14 recipe memory, soft air venting as well as multi-stage gas flush capability just to name a few of the control options it offers the operator. This model comes standard with filler plates that help place the package being sealed at the proper height as well as cut down the cycle time for small packages by forcing excess air out of the vacuum cavity. An optional slant tray can replace the filler boards if you are working with a product that will have liquid inside the package. Other options such as a gas flush system, bi-active seal system and 220V/1PH power allow the CHTC-520F to handle a wide variety of applications. The model CHTC-520F is also the smallest table top unit available with the optional “PreciseSeal” fully validatable PLC/HMI based control system.
IMPAK has supplied CHTC-520F machines for the following applications:
| Chamber size | 23.6" x 23.6" |
| Chamber depth | 3+5/200mm |
| Distance between seal bars | 20/505mm |
| Seal bar length | 21.2"/540mm |
| Vacuum pump capacity | 21m3/h (1-1/4 hp/1kw) |
| Voltage | 110V/1ph/60hz/16amp |
| Machine weight | 280 lbs. /127 kg |
| Machine size - L x W x H | 24.0" x 30.0" x 22.0" |
