Starting Price: $4,500.00
Standard Features:
NEED VACUUM BAGS? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags or our 8.4375" x 12.875" O.D. Vacuum Bags
AVAILABLE IN 2-3 WEEKS LEAD TIME

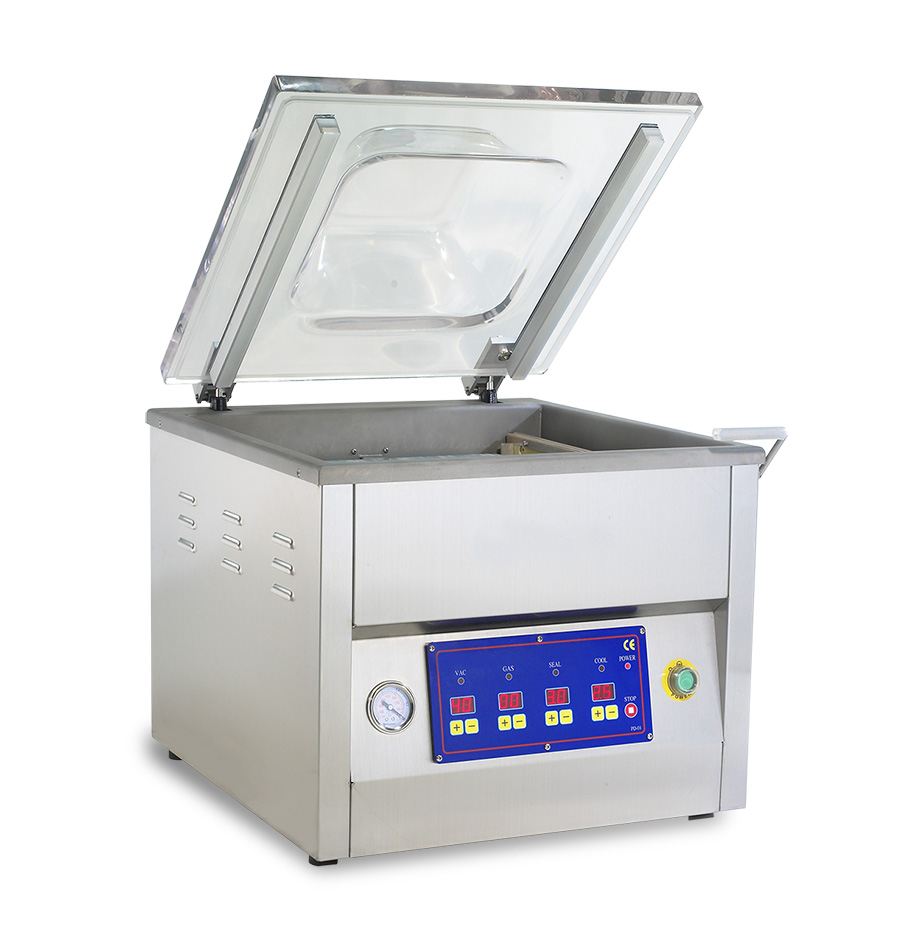

IMPAK’s model CHTC-420LR is one of our most popular table top vacuum chamber sealer models. The “LR” in the model number lets you know that this machine features two seal bars, one on the right and one on the left side of the vacuum cavity area. Like all IMPAK chamber vacuum sealers this machine is ETL tested and certified and labeled as meeting UL and CSA safety standards for packaging equipment as well as NSF sanitary standards. This rugged functional machine utilizes an all # 304 stainless steel housing and vacuum cavity and features a Busch vacuum pump for reliable and powerful vacuum performance. The IMPAK PD-01 basic digital control panel allows the operator to quickly set the parameters for vacuum time, gas flush time (with optional gas flush system), seal time and cooling time with the accuracy of a digital readout. If your application requires more advanced control then the optional PNC-01 microprocessor based control panel may be just what you need. The PNC-01 allows for the vacuum to be controlled via time or vacuum pressure and also includes a 14 recipe memory, soft air venting as well as multi-stage gas flush capability just to name a few of the control options it offers the operator. This model comes standard with filler plates that help place the package being sealed at the proper height as well as cut down the cycle time for small packages by forcing excess air out of the vacuum cavity. An optional slant tray can replace the filler boards if you are working with a product that will have liquid inside the package. Other options such as a gas flush system, bi-active seal system and 220V/1PH power allow the CHTC-420LR to handle a wide variety of applications.
IMPAK has supplied CHTC-420LR machines for the following applications:
| Chamber size | 19.8" x 19.2" |
| Chamber depth | 5+4/230mm |
| Distance between seal bars | 14.5/370mm |
| Seal bar length | 16.9"/430mm |
| Vacuum pump capacity | 21m3/h (1-1/4 hp/1kw) |
| Voltage | 110V/1ph/60hz/16amp |
| Machine weight | 220 lbs. /100 kg |
| Machine size - L x W x H | 20.0" x 21.0" x 21.0" |
CHTC-420 Stainless Steel Chamber Vacuum Sealer
Chamber Sealer Comparison - Vacuum With and Without Gas Flush
Swing Lid Double Chamber in Operation
A hermetic seal on flexible packaging can be achieved with any of our sealing machines, this quick guide will help you choose the unit that will work best for your production needs.
Not every Industrial Vacuum Sealer applies to every application. There are different models and types of Vacuum Sealers available, and each one of those sealers has different features that can affect the way a production line works.
We design and manufacture custom sealing equipment to meet the unique needs of our customers. In addition to new machinery we even retrofit our customers’ existing equipment, regardless of the brand.
