SpoutPak™ Bags

The latest innovation in the continuing evolution and development of stand-up pouch and packaging technology is the integration of closures into the flexible package.

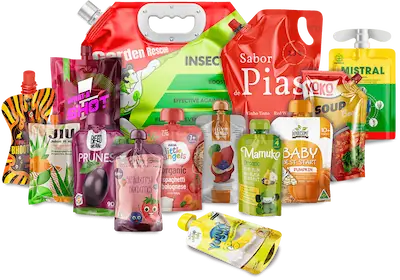

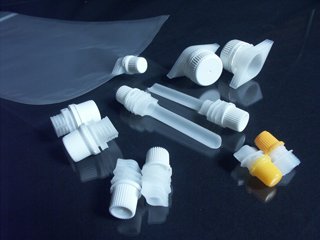

IMPAK can produce low quantity high resolution printed SpoutPak™ pouches for early stage product testing and market development as well as high volume (250,000 + per shipment) production ready packages. A number of fitments are available, including 9, 16 and 23mm (approximately 3/8, 5/8 and 1.0 inch I.D. respectively.) We have the capability to support customer investment in proprietary closures and the molds required to produce them. We are especially proud of our 1 gallon SpoutPak™ with an almost 1" in diameter reclosable screw cap.

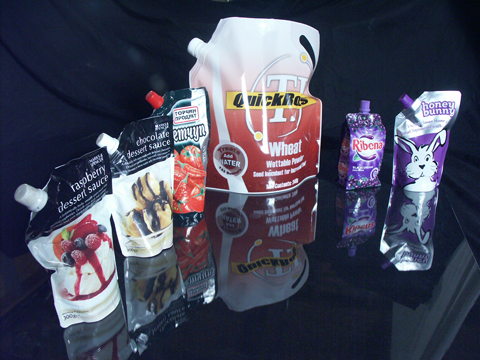

Such closures can be combined with high resolution photograph quality printing on a wide range of substrates, including foil, mylar, nylon, polypropylene and more. ALL materials are FDA approved and Food grade.

SPECIAL FEATURES:

ALL materials are FDA approved and Food grade.
Equilibrium - Round Bottom Gusset allows balance.

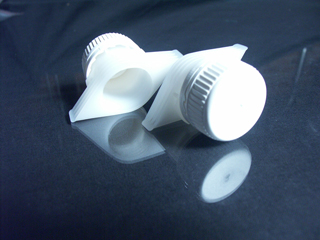

Resealable Spout (threaded cap & fitment)
Positive Spout Closure
Heat Sealable
Moisture Proof
Puncture Resistant
Warehouse Saving
Top of the pouch is open for easy filling!

For sealing see heat sealing equipment.

Heavy duty stand-up pouch with pour spout. Sturdy bottom gusset allows pouch to stand straight. Wide face is perfect for graphics and displays. These pouches have an opening at the top for easy filling and are heat sealable (they are NOT filled through the spout.) SpoutPak™ has positive spout closures and they are puncture resistant, odor proof and moisture proof. Environmentally conscientious the SpoutPak™ is perfect for powders, liquids, gels and granular products. Most sizes are packed 500 per case.

For immediate product testing or low volume requirements, we are maintaining inventory on seven different closure/pouch styles including two foil laminate structures that are ideal for refrigerated liquid products.

Many pouches are produced to customer specifications with a choice of sizes, colors, printed and unprinted. For more information provide the size, application, and quantity required to: customprinting@sorbentsystems.com

Custom Design and Options

Our Technical support staff and engineering personnel are available to assist you with unique and proprietary designs. The item below is one of the two proprietary components developed for a filtration system that can deliver sterile water in emergency situations. IMPAK worked closely with the product development personnel involved providing a dual track zipper, a custom die cut feature and a screw fitment that attached to medical grade Tygon™ tubing. Contact our Sales personnel with engineering drawings and your specific requirements.

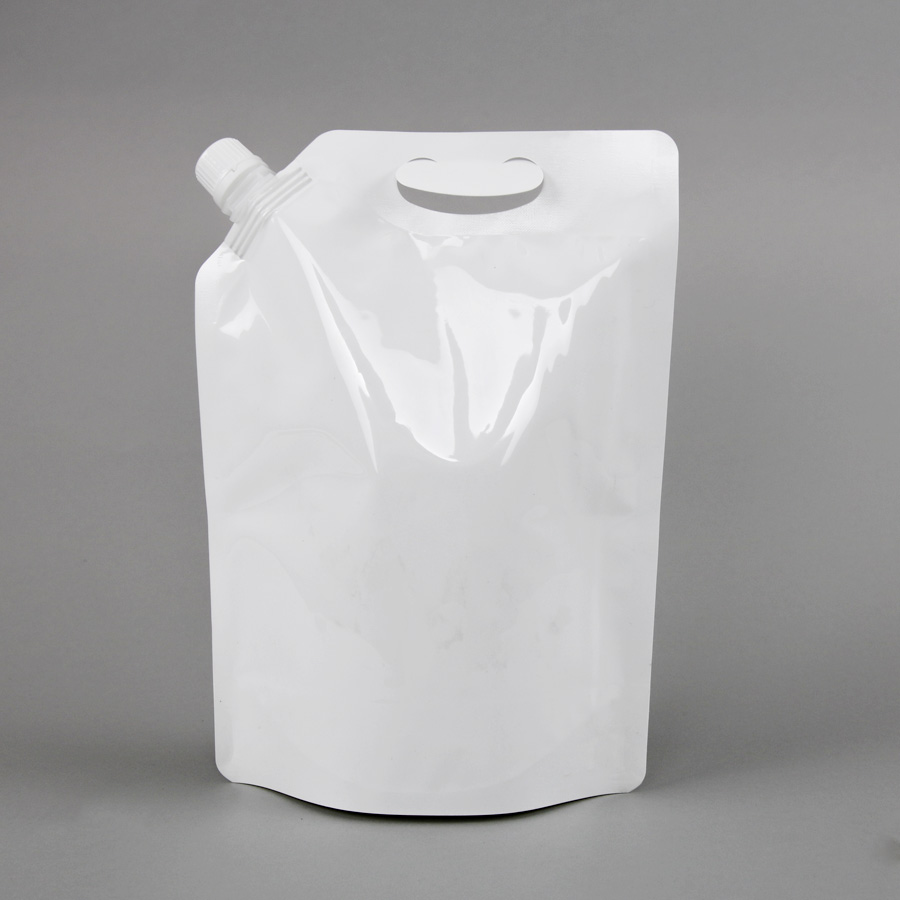

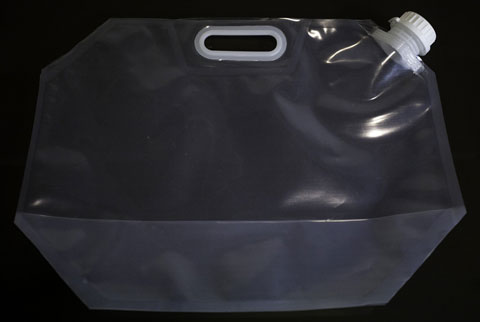

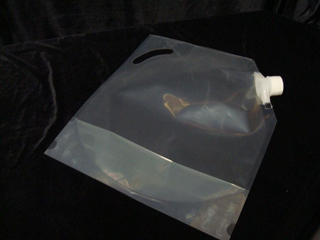

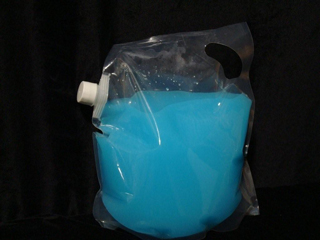

The NEW one gallon SpoutPak™ has a handle, wide mouth screw cap and is 250 per case.

A:
	Dimensions:	11.25" x 12.0" x 6.0" (O.D.) 128 fl oz.
	P/N:	SP1GPM5.5
	Color:	Transparent
	Packaging:	250/case
	Style:	1 Gallon Stand up Spout Bag with 6" bottom gusset and Handle. Cap: 23mm/1.0 inch
	Material:	PAKPM4K

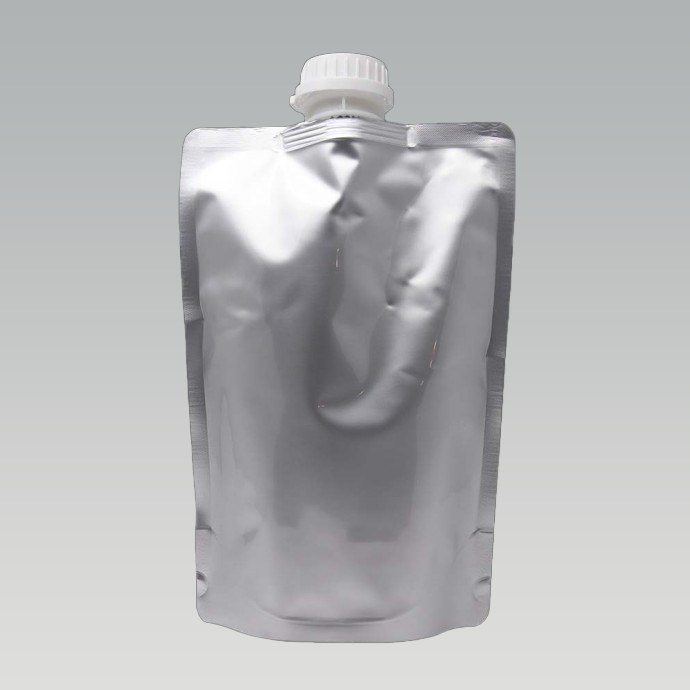

ALUMINUM FOIL SPOUTPAK

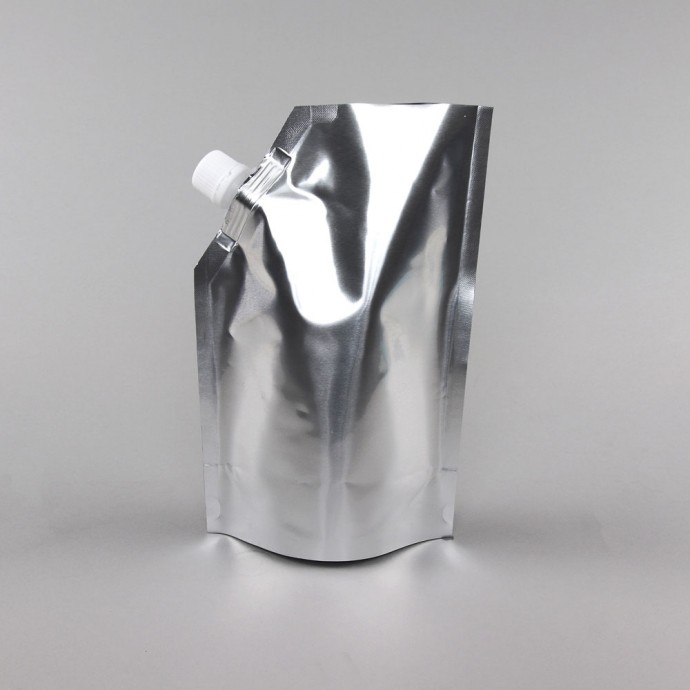

NEW! Stock aluminum foil laminate SpoutPak™ with larger 19mm (I.D.) pour spout.

B:
	Dimensions:	6.0" x 9.0" x 3.25" with 19mm spout - 20.3 fl oz.
	P/N:	SP600MFS06
	Color:	Silver/Opaque
	Packaging:	500/case
	Style:	600ml Stand up Spout Bag with 3.25" bottom gusset. Cap: 19mm
	Material:	PAKVF4N Aluminum Foil/Nylon/LLDPE

STOCK ITEM C:
	Dimensions:	5 1/2" x 8 1/2" x 1 1/2" - 16.9 fl oz.
	P/N:	SP500GPM5.5
	Color:	Transparent (Clear)
	Packaging:	500/case
	Style:	500ml Stand up Spout Bag with 3" bottom gusset. Cap: 9mm I.D. (≈ 3/8" I.D.)
	Material:	PAKPM4K

ALUMINUM FOIL SPOUTPAK

D:
	Dimensions:	4.5" x 7.0" x 2.75" (OD) - 10.1 fl oz.
	P/N:	SP300PFN56
	Color:	Silver (Opaque)
	Packaging:	1000/case
	Style:	300ml Stand up Spout Bag with 3" bottom gusset. Cap: 9mm I.D. (≈ 3/8" I.D.)
	Material:	PAKVF56PFN Aluminum Foil/Nylon/LLDPE

STOCK ITEM E:
	Dimensions:	4 3/4" x 8.0" x 1 1/2" - 8.5 fl oz.
	P/N:	SP250PM5.5
	Color:	Transparent
	Packaging:	500/case
	Style:	250ml Stand up Spout Bag with 3" bottom gusset. Cap: 9mm
	Material:	PAKPM4K

Example of Printed 250ml SpoutPak

STOCK ITEM F:
	Dimensions:	4 1/2" x 6.0" x 1 1/2" - 4.2 fl oz.
	P/N:	SP125PM5.5
	Color:	Transparent
	Packaging:	500/case
	Style:	125ml Stand up Spout Bag with 1.5" bottom gusset. Cap: 9mm
	Material:	PAKPM4K

ADDITIONAL PRODUCT

This additional product we have in stock can be purchased. Each bag has a 3.5 inch header, a dual track ZipSeal™ to insure that the 3 liter compartment can hold liquids.

STOCK ITEM G:
	Dimensions:	8.0" x 14.5" w/3.5" header and dual track ZipSeal™
	P/N:	SP0819DTZ
	Color:	Transparent
	Packaging:	300/case
	Style:	Spout Bag with 3.5" header.
	Material:	PAKDRY60BNM

H:
	Dimensions:	3.0" x 6.0" (OD) - 20 ml
	P/N:	SP20MLV4W
	Color:	White
	Packaging:	1000/case
	Style:	20ml Spout Bag Cap: 6mm
	Material:	PAKVF4W
